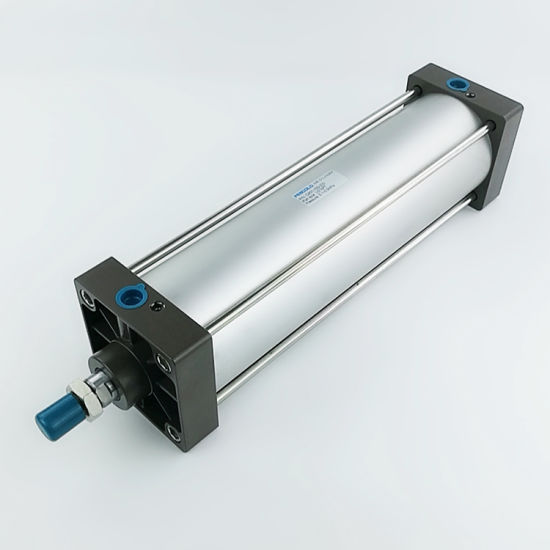

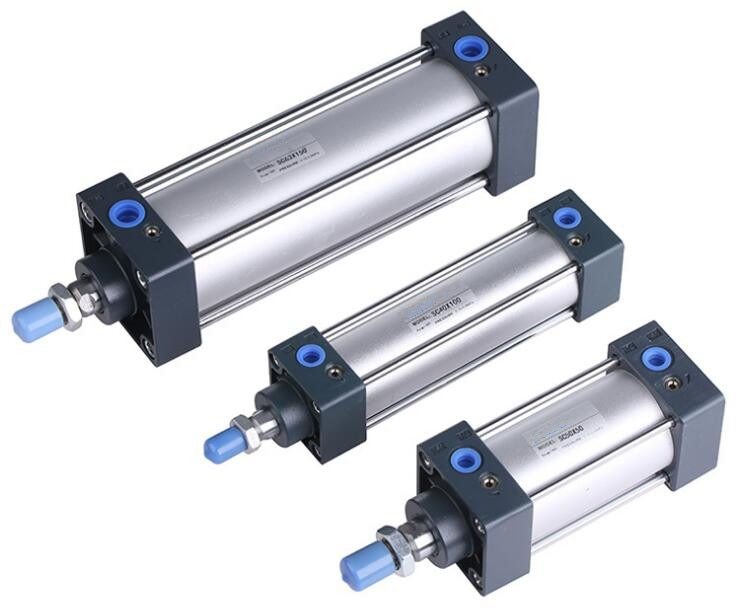

Air Cylinder – SC SERIES – Standard
Characteristics:
- This series of cylinder conforms to: Airtac standard.
- There is an adjustable buffers at the terminals of the cylinder except for mounted cushion.
- We can offer different kinds of mounting style according to standard, like Foot mounting,Front flange mounting, Rear-flange mounting,and so on.
- Different thread type can be offered according to customers’ requirements, e.g.:BSP, NPT etc.
- Needn’t lubricate on piston rod by oil.
| BORE (mm) | STANDARD STROKE |
| 32 |
25, 50, 75 80, 100, 125, 160, 175, 200, 250, 300, 350, 400, 450, 500, 600,700, 800, 900,1000 |
| 40 | |
| 50 | |
| 63 | |
| 80 | |
| 100 | |
| 125 | |
| 160 | |
| 200 |
